Layer 4 vs Layer 7 Load Balancing Explained

When you browse Instagram, stream Netflix, or shop on Amazon, robust load balancing technology works silently in the background, handling millions of simultaneous requests across multiple server. This critical infrastructure component prevents system overloads and ensures consistent user experiences even during traffic spikes.

Load Balancing Fundamentals

Load balancing distributes incoming network traffic across multiple servers to ensure no single server becomes overwhelmed. This improves application responsiveness and availability while preventing server failures. The choice between Layer 4 and Layer 7 load balancing represents a crucial architectural decision with significant implications for performance, security, and functionality.

The Network Layer Context

To understand these approaches, we need to reference the OSI model that categorizes network functions:

The OSI model provides a framework for understanding network communications. For load balancing, we focus primarily on Layer 4 (Transport) and Layer 7 (Application).

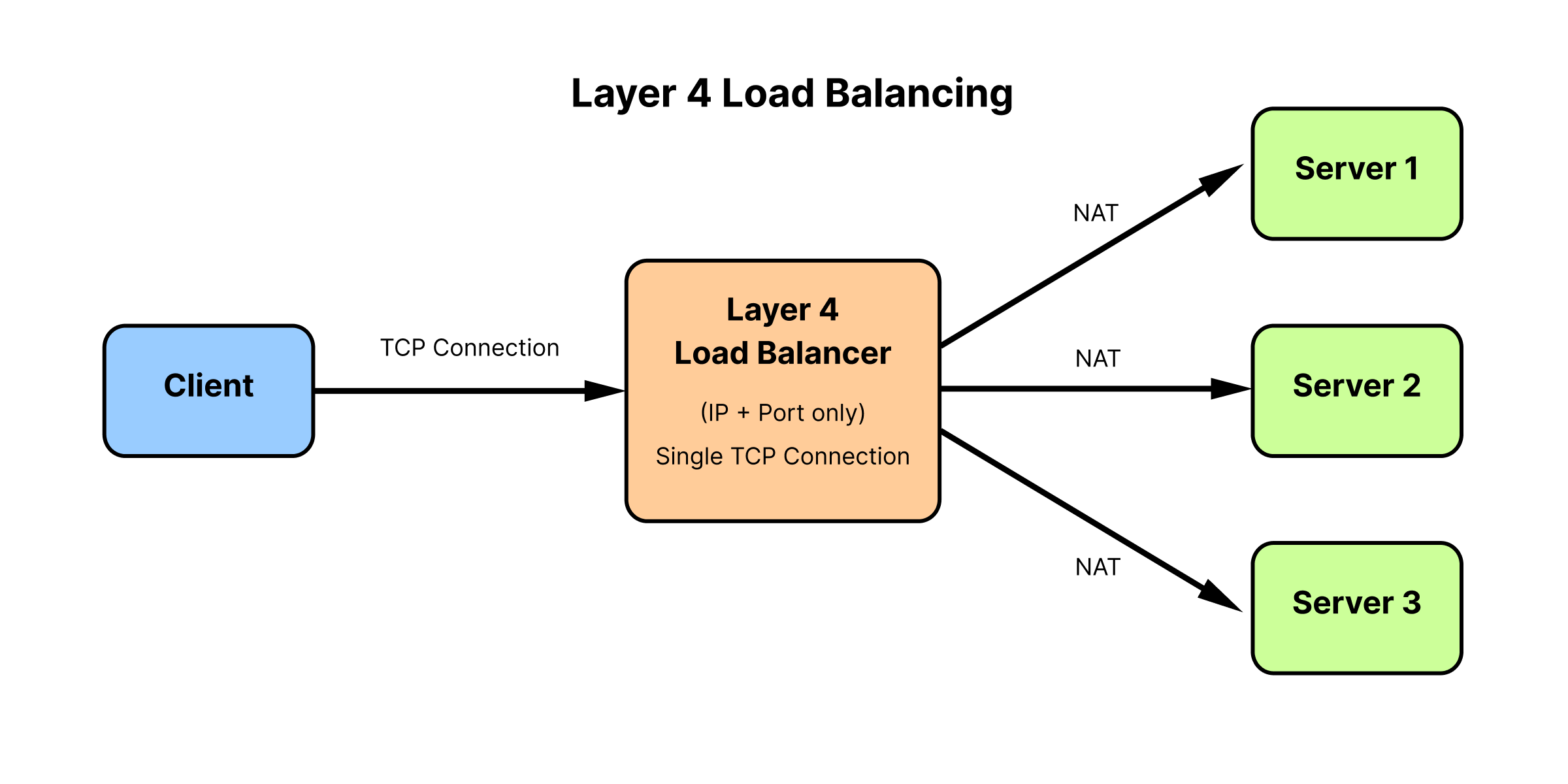

Layer 4 Load Balancing: Transport Layer

Layer 4 load balancers operate at the transport protocol level, making routing decisions based solely on:

• Source and destination IP addresses
• TCP/UDP port information
• Network-level client information

These load balancers maintain a single TCP connection from client to server, using Network Address Translation (NAT) to route packets without inspecting their contents.

Advantages

• Performance Efficiency: Minimal packet inspection results in lower processing overhead
• Protocol Agnosticism: Works with any TCP/UDP traffic, not just HTTP
• Security Isolation: Cannot decrypt encrypted traffic, maintaining end-to-end encryption
• Connection Efficiency: Maintains a single TCP connection throughout the request lifecycle
• Lower Latency: Fewer processing steps means faster packet forwarding

Limitations

• Content Blindness: Cannot make decisions based on request content or headers
• Limited Routing Logic: Unable to route based on URLs, cookies, or application-specific data
• No Content Manipulation: Cannot modify headers or rewrite request content
• Microservice Limitations: Difficult to implement path-based routing needed for microservices
• No Application-Level Features: Cannot implement caching or application-aware health checks

NGINX Layer 4 Load Balancing Example

# Layer 4 TCP load balancing

stream {

    # Web server group
    upstream web_servers {
        server backend1.example.com:80;
        server backend2.example.com:80;
    }

    # Database server group
    upstream db_servers {
        server db1.example.com:5432;
        server db2.example.com:5432;
    }

    # HTTP traffic forwarding
    server {
        listen 80;
        proxy_pass web_servers;
    }

    # PostgreSQL traffic forwarding
    server {
        listen 5432;
        proxy_pass db_servers;
    }
}

This above configuration shows:

1. Creates two upstream server groups: web servers and database servers
2. Listens on port 80 and forwards web traffic to the web servers
3. Listens on port 5432 and forwards database traffic to the database servers
4. Makes decisions based solely on IP addresses and ports

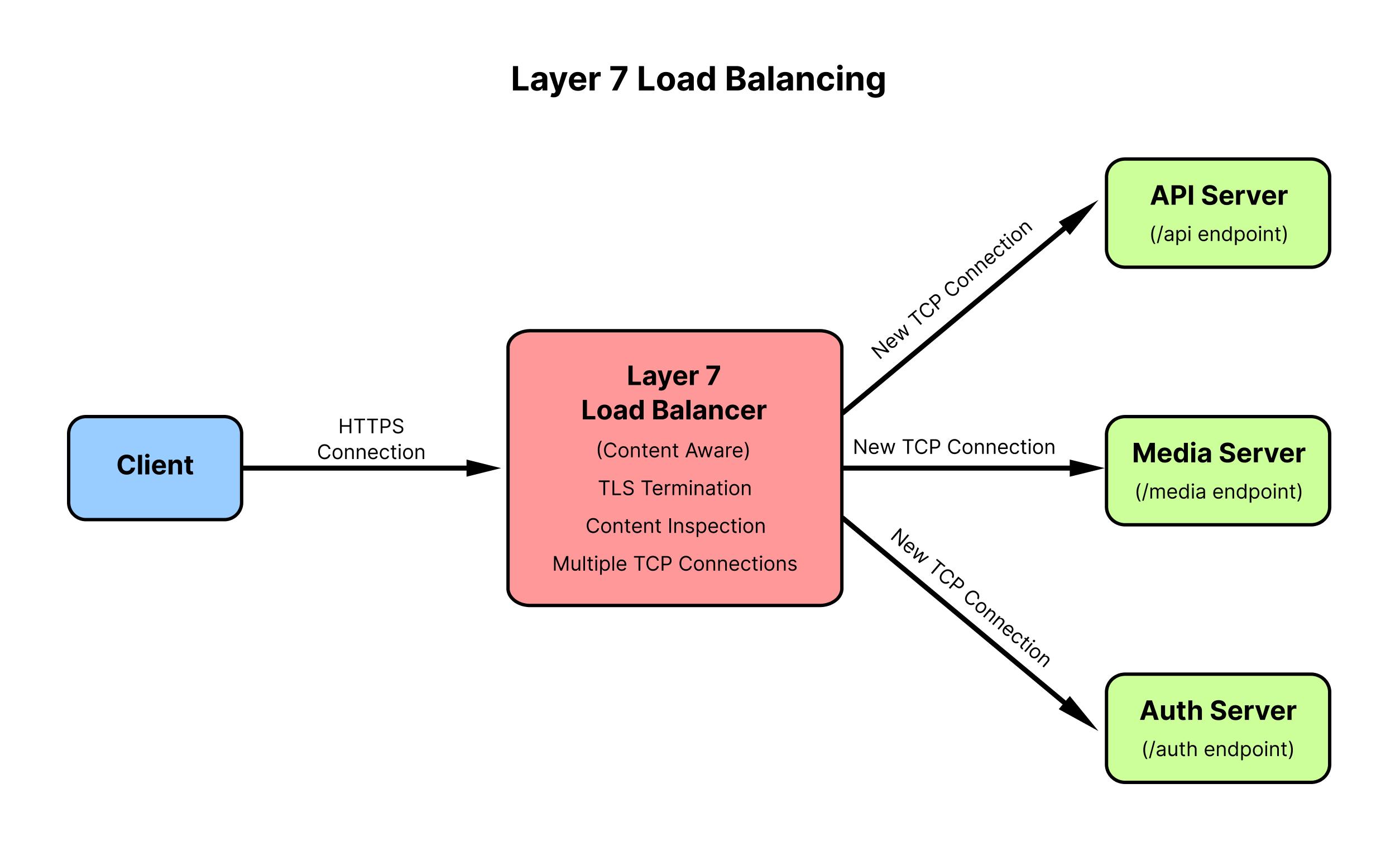

Layer 7 Load Balancing: Application Layer

Technical Operation

Layer 7 load balancers operate at the application layer, which means they:

• Terminate client connections at the load balancer
• Inspect and potentially modify request content
• Establish new connections to appropriate backend servers
• Create two distinct TCP connections (client-to-LB and LB-to-server)

Advantages

• Content-Based Routing: Can route based on URL paths, headers, cookies, or message content
• Microservice Architecture Support: Enables routing different API endpoints to specialized services
• Advanced Health Checking: Can verify application functionality, not just server availability
• Content Manipulation: Ability to add/modify headers or transform request/response content
• Caching Implementation: Can cache responses for improved performance
• TLS Termination: Can offload SSL/TLS processing from backend servers

Limitations

• Computational Overhead: Content inspection requires more processing power
• TLS Processing: Must decrypt and re-encrypt secure traffic
• Increased Latency: Additional processing steps add some latency
• Security Considerations: Decrypted traffic visibility at the load balancer level
• Certificate Management: Requires TLS certificates to be installed on the load balancer

NGINX Layer 7 Load Balancing Example

# Layer 7 HTTP load balancing
http {
    # API server group
    upstream api_servers {
        server api1.example.com:8080;
        server api2.example.com:8080;
    }

    # Media server group
    upstream media_servers {
        server media1.example.com:9000;
        server media2.example.com:9000;
    }

    # Auth server group
    upstream auth_servers {
        server auth1.example.com:8081;
        server auth2.example.com:8081;
    }

    # Main server configuration
    server {
        listen 80;
        server_name example.com;

        # Route API requests
        location /api/ {
            proxy_pass http://api_servers;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
        }

        # Route media requests
        location /media/ {
            proxy_pass http://media_servers;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
        }

        # Route authentication requests
        location /auth/ {
            proxy_pass http://auth_servers;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
        }
    }
}

This above configuration shows Layer 7's capabilities:

1. Creates three upstream server groups for different services
2. Routes requests based on URL paths (/api/, /media/, /auth/)
3. Forwards requests to the appropriate backend servers
4. Adds headers to provide original client information to backend servers

Hybrid Implementation with NGINX

For environments that need both Layer 4 and Layer 7 capabilities, NGINX supports a hybrid approach:

# Combined Layer 4 and Layer 7 load balancing

# Layer 4 for database traffic
stream {
    upstream database {
        server db1.example.com:5432;
        server db2.example.com:5432;
    }

    server {
        listen 5432;
        proxy_pass database;
    }
}

# Layer 7 for HTTP traffic
http {
    upstream web_servers {
        server web1.example.com:8080;
        server web2.example.com:8080;
    }

    server {
        listen 80;
        server_name example.com;

        location / {
            proxy_pass http://web_servers;
            proxy_set_header Host $host;
        }
    }
}

This simple hybrid configuration:

1. Uses Layer 4 load balancing for database connections
2. Uses Layer 7 load balancing for web traffic
3. Leverages the strengths of both approaches in a single NGINX instance

Making the Right Choice

When deciding which approach to go with, consider these factors:

1. Performance Requirements: Layer 4 offers lower overhead for high-throughput scenarios
2. Protocol Diversity: Layer 4 handles any TCP/UDP protocol; Layer 7 is typically HTTP-focused
3. Routing Complexity: Layer 7 enables path/content-based routing
4. Security Model: Layer 4 maintains end-to-end encryption; Layer 7 requires TLS termination
5. Architecture: Microservices typically require Layer 7's path-based routing capabilities

Summary

For most modern web applications, a hybrid approach often provides the best balance, using Layer 4 for raw performance where needed and Layer 7 for intelligent content routing. This combination delivers both the efficiency and the flexibility required by complex distributed systems.
